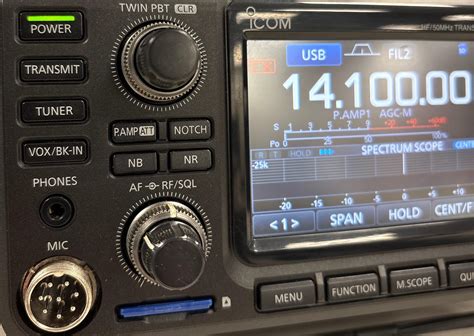

The Icom IC-7300 is a highly regarded amateur radio transceiver known for its exceptional performance and versatility. One crucial aspect of owning and operating the IC-7300 is selecting the right power supply to ensure reliable and efficient operation. The power supply is the backbone of any radio setup, providing the necessary voltage and current to the transceiver. In this article, we will delve into the various power supply options available for the Icom IC-7300, exploring their features, advantages, and considerations to help you make an informed decision.
Key Points
- The Icom IC-7300 requires a power supply that can deliver 13.8V DC at a minimum of 22A to ensure full functionality.
- Linear power supplies offer simplicity and reliability but may generate heat and be less efficient than switch-mode supplies.
- Switch-mode power supplies are more efficient, compact, and lightweight but can introduce noise into the system if not properly filtered.
- Battery power is a viable option for portable or emergency operations, offering flexibility and autonomy.
- When selecting a power supply, consider factors such as voltage regulation, current capacity, efficiency, and noise suppression.
Linear Power Supplies
Linear power supplies have been the traditional choice for amateur radio equipment, including the Icom IC-7300. These supplies use a transformer, rectifier, and filter capacitors to convert AC mains voltage to a stable DC output. Linear supplies are known for their simplicity, reliability, and low noise characteristics, making them suitable for radio applications where signal purity is crucial. However, they can be less efficient than switch-mode supplies, generating more heat and potentially reducing their lifespan.

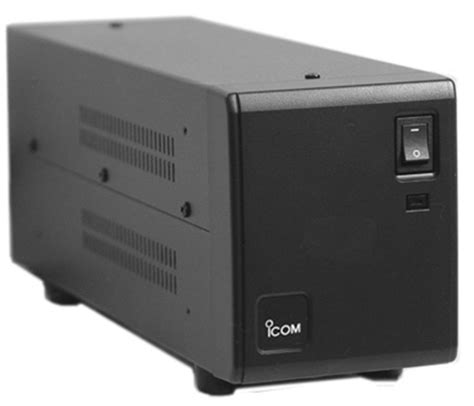

A notable example of a linear power supply suitable for the IC-7300 is the Icom PS-126, which is designed to provide a stable 13.8V DC output at 25A. This supply is specifically matched to the IC-7300's requirements, ensuring optimal performance and reliability. Other third-party linear power supplies are also available, offering various features such as adjustable voltage, current limiting, and built-in fans for cooling.
Switch-Mode Power Supplies
Switch-mode power supplies, also known as switching power supplies, have become increasingly popular due to their high efficiency, compact size, and lightweight design. These supplies use high-frequency switching circuits to convert the input voltage to the desired output voltage, achieving efficiencies often exceeding 80%. This results in less heat generation and lower power losses compared to linear supplies. However, switch-mode supplies can introduce switching noise into the system if not properly filtered, potentially affecting radio performance.
For the Icom IC-7300, switch-mode power supplies such as the MFJ-4230DV or the Astron SS-30M can provide the necessary 13.8V DC at 22A or higher. These supplies are designed with noise reduction in mind, incorporating features like built-in EMI filters and shielded construction to minimize interference. When selecting a switch-mode supply, it's essential to ensure that it meets the IC-7300's power requirements and is designed with radio-friendly noise suppression.
| Power Supply Type | Voltage Regulation | Current Capacity | Efficiency |
|---|---|---|---|
| Linear (Icom PS-126) | ±1% | 25A | 60% |
| Switch-Mode (MFJ-4230DV) | ±2% | 30A | 85% |
| Battery (Deep Cycle) | Varying | Dependent on Capacity | N/A |
Battery Power Options

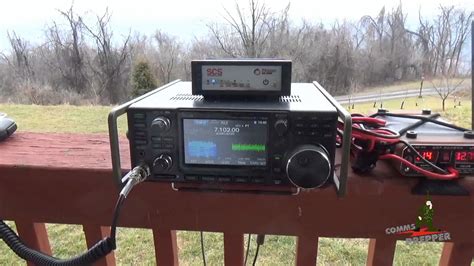

Battery power is an attractive option for amateur radio operators who require portability or wish to maintain operation during mains power outages. Deep cycle batteries, designed for repeated charge/discharge cycles, can be used to power the IC-7300. The choice of battery depends on the desired autonomy time, with larger capacity batteries providing longer operation. However, batteries introduce variables such as voltage sag under load and the need for charging management, which must be carefully managed to ensure reliable operation.
A suitable battery for powering the IC-7300 could be a deep cycle battery with a capacity of at least 40Ah, assuming an average current draw of 10A during normal operation. This would provide approximately 4 hours of continuous operation, depending on the actual current consumption and battery efficiency. It's crucial to select a battery compatible with the IC-7300's voltage requirements and to implement a proper charging system to maintain the battery's health and extend its lifespan.
Power Supply Selection Considerations
When selecting a power supply for the Icom IC-7300, several factors must be considered to ensure optimal performance and reliability. These include:
- Voltage Regulation: The power supply should provide a stable output voltage within the IC-7300's specified range (13.5V to 14.5V DC) to prevent damage or malfunction.
- Current Capacity: The supply must be able to deliver the IC-7300's peak current demand, which is 22A for full functionality.
- Efficiency: Higher efficiency reduces heat generation and power losses, extending the lifespan of the supply and reducing operating costs.
- Noise Suppression: For switch-mode supplies, built-in noise filtering is essential to prevent interference with the radio's operation.
- Connectivity and Compatibility: Ensure the power supply's output connector matches the IC-7300's power input and that the supply is designed for the radio's operational environment (e.g., temperature range, humidity).
What is the minimum power supply current required for the Icom IC-7300?
+The Icom IC-7300 requires a minimum of 22A to operate at full capacity.
Can I use a battery to power the IC-7300?
+What are the advantages of using a switch-mode power supply over a linear one?
+Switch-mode power supplies are generally more efficient, compact, and lightweight than linear supplies, making them ideal for portable applications.
In conclusion, selecting the right power supply for the Icom IC-7300 involves careful consideration of several factors, including voltage regulation, current capacity, efficiency, and noise suppression. Whether opting for a linear, switch-mode, or battery power solution, understanding the specific requirements and characteristics of each option is crucial for ensuring reliable and optimal performance of the radio. By choosing a power supply that meets these needs, amateur radio operators can enjoy the full capabilities of the IC-7300, whether in stationary, portable, or emergency operation scenarios.
