When working with computer networks, understanding the components of an IP address is crucial. An IP address is typically represented in a dotted decimal notation, such as 192.168.1.100. This address is divided into two main parts: the network ID and the host ID. The subnet mask and default gateway are two essential components that help in routing data packets within a network and between networks. In this article, we'll explore how to find the subnet mask and gateway from an IP address.
Key Points
- Understanding the structure of an IP address and its components.
- Identifying the subnet mask and its role in network configuration.
- Locating the default gateway for routing data packets.
- Practical steps to determine the subnet mask and gateway using an IP address.
- Utilizing command-line tools for retrieving network configuration details.
Understanding IP Address Components
An IP address is a 32-bit number that is usually expressed in dotted decimal notation. It consists of four octets (or bytes) separated by dots. For example, an IP address might look like 192.168.1.100. Each part of the IP address (each octet) can range from 0 to 255. The first part of the IP address identifies the network, and the last part identifies the host within that network. The subnet mask is used to determine which part of the IP address belongs to the network ID and which part belongs to the host ID.
Subnet Mask
A subnet mask is a 32-bit number that is used to differentiate the network ID and host ID portions of an IP address. It works by performing a bitwise AND operation with the IP address. The bits that are set to 1 in the subnet mask represent the network ID, while the bits set to 0 represent the host ID. Common subnet masks include 255.255.255.0, 255.255.0.0, and 255.0.0.0, each defining different network and host boundaries.
| Subnet Mask | Description |
|---|---|
| 255.255.255.0 | Class C subnet mask, used for most home and small business networks. |
| 255.255.0.0 | Class B subnet mask, used for larger networks. |
| 255.0.0.0 | Class A subnet mask, used for very large networks. |
Default Gateway
The default gateway is the IP address of the device on a network that serves as the access point to another network or to the internet. When a device sends data to an IP address that is not on the same network, the data is sent to the default gateway, which then forwards the data to its destination. The default gateway is crucial for internet connectivity and for communicating between different networks.
Finding Subnet Mask and Gateway

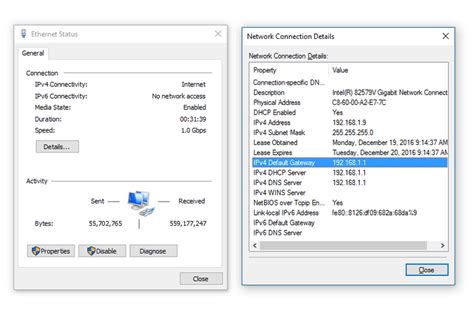

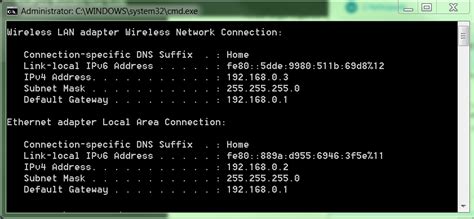

There are several ways to find the subnet mask and default gateway of a network, depending on the operating system of the device. For Windows users, the command ipconfig can be used in the Command Prompt to view network configuration details, including the subnet mask and default gateway. For macOS and Linux users, the command ifconfig or ip addr can be used in the Terminal to achieve similar results.
- Open the Command Prompt (Windows) or Terminal (macOS, Linux).
- Type `ipconfig` (Windows) or `ifconfig`/`ip addr` (macOS, Linux) and press Enter.
- Look for the section related to the active network connection (e.g., Ethernet or Wi-Fi).
- Note down the subnet mask and default gateway values from the output.
Conclusion
In conclusion, understanding the subnet mask and default gateway is essential for configuring and troubleshooting networks. By using command-line tools and understanding the structure of an IP address, users can easily find the subnet mask and gateway for their network. This knowledge is not only useful for network administrators but also for anyone looking to set up or manage their own network at home or in a small business setting.
What is the purpose of a subnet mask in a network?
+The subnet mask is used to differentiate the network ID and host ID portions of an IP address, helping to determine which devices are on the same network.
How do I find my default gateway IP address?
+You can find your default gateway IP address by using the command ipconfig in Windows or ifconfig/ip addr in macOS and Linux, and looking for the default gateway value in the output.
What is the difference between a subnet mask and a default gateway?
+A subnet mask is used to determine the network ID and host ID of an IP address, while the default gateway is the IP address of the device that serves as the access point to another network or the internet.
